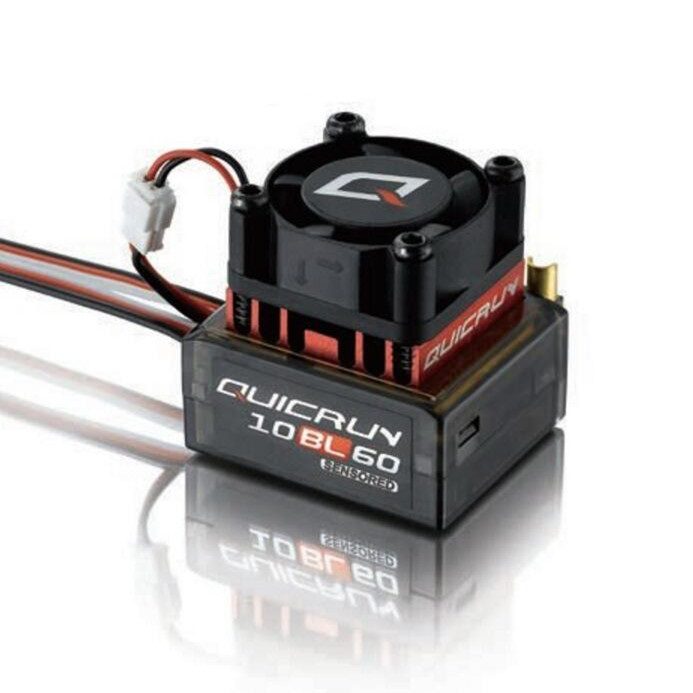

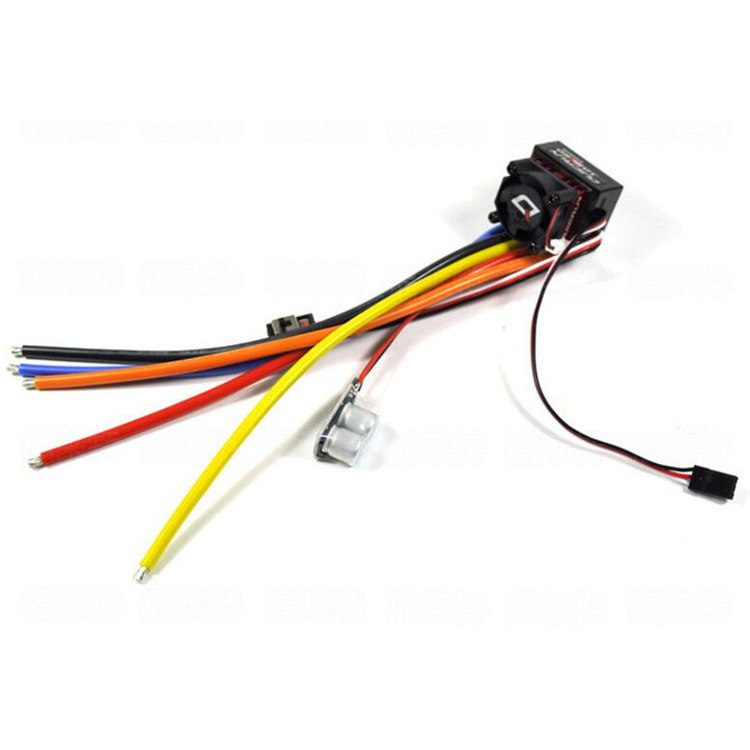

HobbyWing QuicRun WP 10BL60 RC ESC Brushless Waterproof 60A Sensorless for 1/10 RC Car Buggy Truck Monster Truggy Rock Crawler

Features:

1.Water-proof
and Dust-proof: The Hobbywing brushless RC 60A ESC suitable to
all-weather sport races; (Note: please uninstall the cooling fan before
using this ESC in water; Clean and dry it soon after the use for
avoiding the connectors get rusty.)

2.External Programming Port: Easy to connect to the Program Card when setting the ESC

3.Multiple
Protections: Low voltage cut-off protection / Over-heat protection /
Throttle signal loss protection / Motor lock-up protection

4.Performance:
Proportional brake with 4 steps of maximum brake force adjustment and 8
steps of drag brake force adjustment; 9 steps of acceleration(punch)
adjustment from “soft” to “Very aggressive” to fit for different kinds
of models, tires and tracks

5.Application: This
Hobbywing brushless ESC suitable for 1/10th short course trucks,
buggies, trucks, and monster trucks.The built-in switch mode BEC with a
maximum output of 6Amp and voltage of 6V make this RC Brushless ESC
compatible with various servos

Tips:
Compatible with optional device – the portable Digital LED Program Card
which is especially convenient for outdoor use.If necessary, you can
consult our customer service to recommend for you.

Description:

HobbyWing
QuicRun WP-10BL60 RC sensorless brushless waterproof 60A ESC suitable
for 1/10 RC Car Buggy Truck Monster Truggy Rock Crawler RC4WD
Sport,compatible with various brushless servos.Simply operation that
built for entry-level and intermediate players

Specifications:

Brand Name: HobbyWing

Model: WP-10BL60

Cont. Current: Fwd. 60A / Rev. 60A

Peak Current: Fwd. 360A / Rev. 360A

Resistance: 0.001Ω

Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster

Battery: 4-9 Cells NiMH, 2-3S Lipo

Motor Limit:

For 2S Lipo or 6 cells NiMH:

On-road: 3656-size or smaller motor with

the KV<6000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

On-road: 3656-size or smaller motor with

the KV<4000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<3000.

BEC Output: 6V/3A (Linear Mode)

Cooling Fan:

From battery directly without regulating

The stock fan can work with 2S and 3S Lipo

Dimensions: 48.5(L)X38(W)X32(H)mm

Weight: 90g
